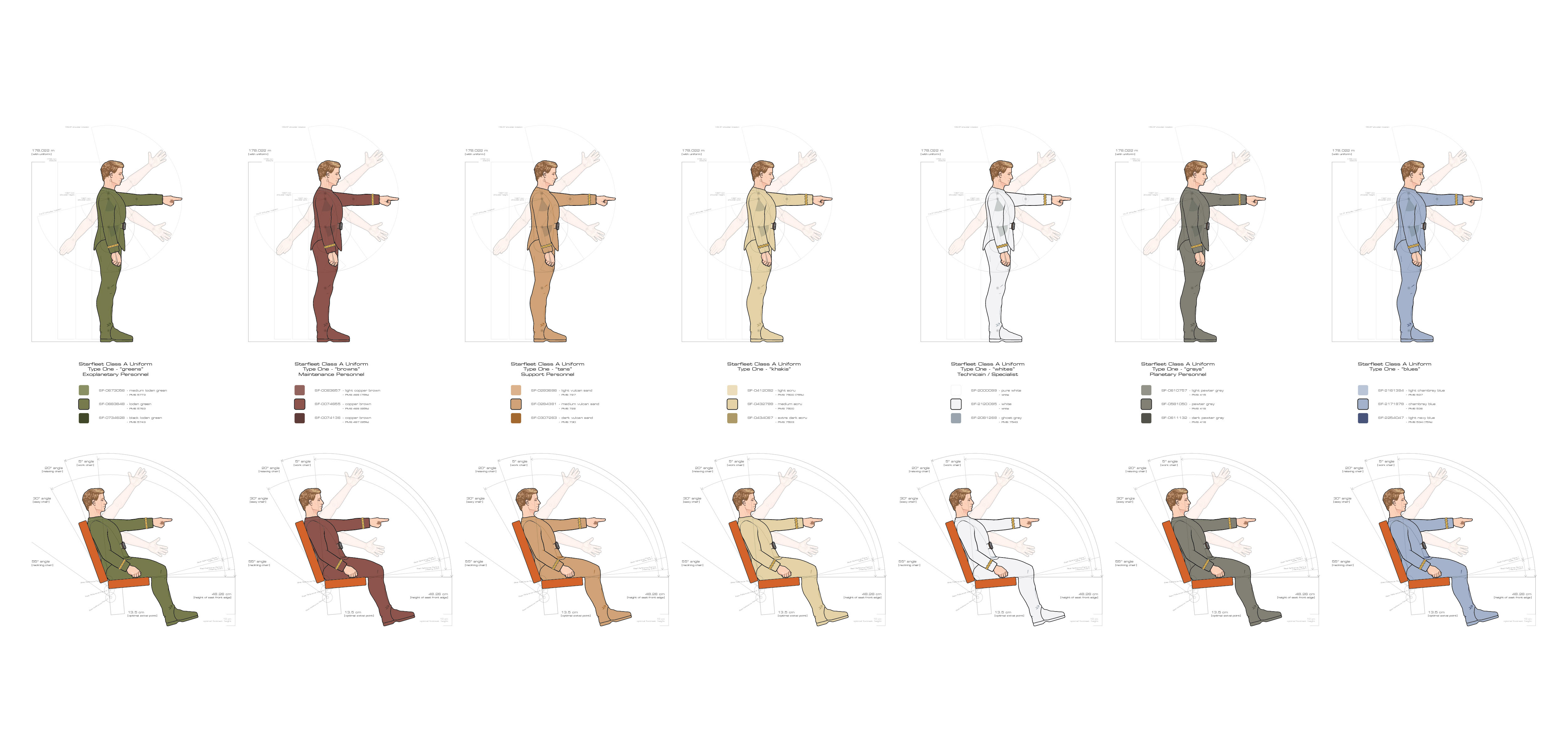

While still trying to recuperate from a case of viral bronchitis, I did manage to do some more work this evening on the side-view Starfleet human form factor illustrations.
I spent a good deal of time checking a myriad reference photos of the uniform materials and colors used for the costumes in Star Trek: The Motion Picture. I managed to arrive at a good set of color swatches that match the various uniform colors, as well as coming up with light and dark versions of the base colors for highlights and shadows within the illustrations.
Like I had done with coming up with the color naming conventions for the cargo pod labels to be used in the cargo bay and workbee cargo modules, I further refined and expanded the “Starfleet” color naming convention. I took a cue from wanting to have a theorized Starfleet Standard “SF” color library along the lines of the Federal Standard color system used by the United States Federal Government (particular in its Department of Defense and OSHA applications).
The numbering system is actually a code derived from the HSB color model within the Adobe Creative Suite software. The HSB color model (also called HSV or HSL models) is based on the human perception of color. It describes three fundamental characteristics of color in the visible spectrum:
Hue refers to the color reflected from or transmitted through an object. It is measured as a location on the standard color wheel, expressed as a degree between 0 and 360. In common use, hue is identified by the name of the color, such as red, orange, or green.
The strength or purity of the color. Saturation, which is sometimes called chroma, represents the amount of gray in proportion to the hue, measured as a percentage from 0 (gray) to 100 (fully saturated). On the standard color wheel, saturation increases from the center to the edge.
Brightness refers to the relative lightness or darkness of the color, usually measured as a percentage from 0 (black) to 100 (white).

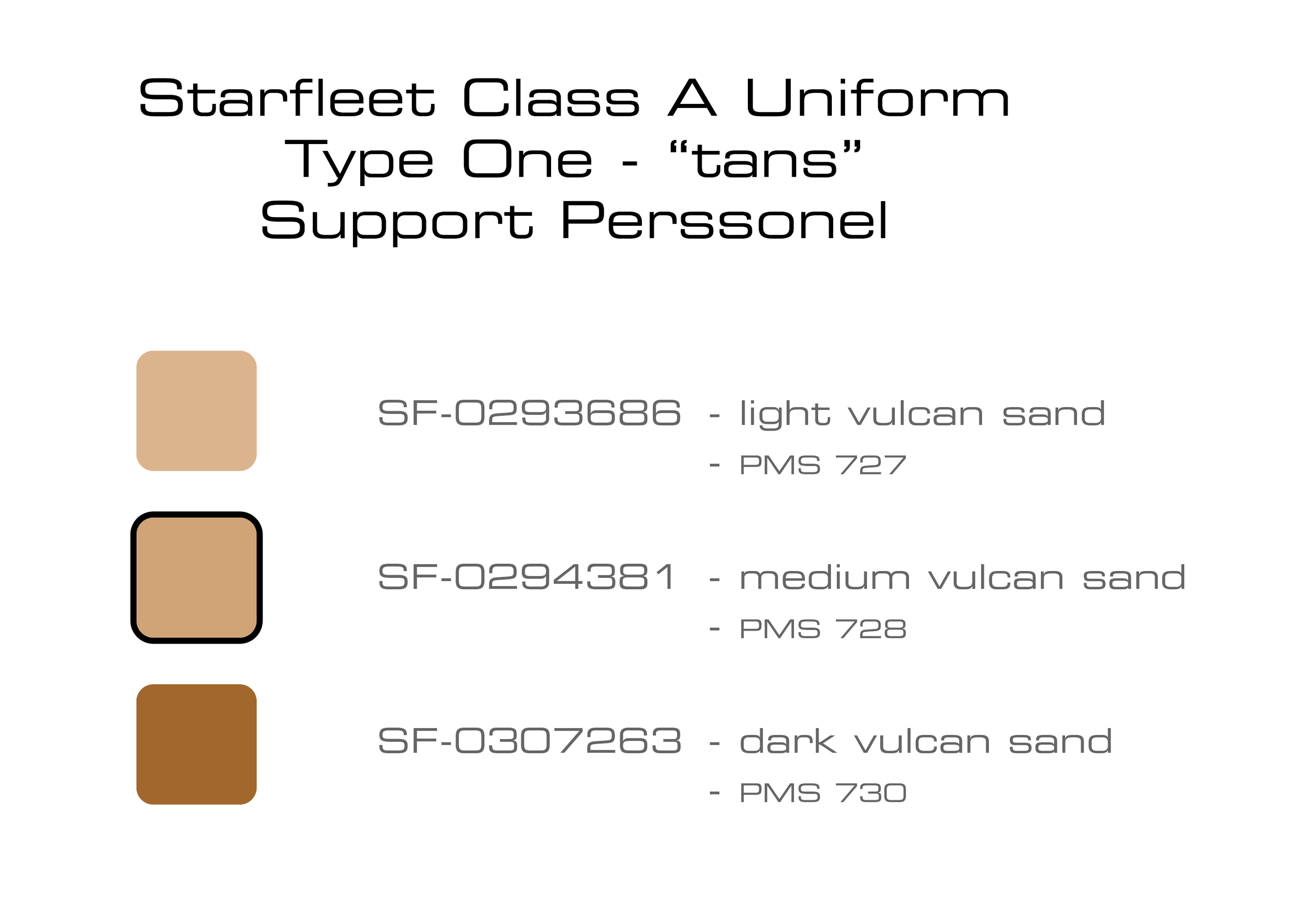

So the convention I have come up with works out as the first three digits representing the hue value (000-360). The second two digits representing the saturation value (00-99) and finally the last two digits representing the brightness value (00-99).
There is also a Pantone Matching System (PMS) number with the swatches for actual print/press reproduction color matching purposes. Pantone is the print industry standard for color matching.
I intend to add another two-digit code after a hyphen to represent the reflectivity or sheen of the color in paint or coating applications where it will range between (00-10) to represent flat (00) to satin (05) to gloss (07) to chrome/mirror (10).
At this stage I have not added that to the illustrations, but may circle back to it down-the-road. It will definitely come into play and will need to be determined when arriving at finish colors for the final drawings when transitioning into model fabrication mode.

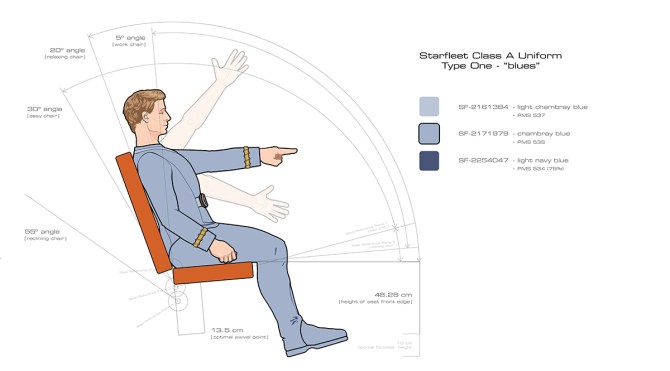

In addition to coming up with the uniform color matching that I am satisfied with, I finally finished up the initial round of my seated figure illustration. The seating angle I went with initially are for “relaxed” chair seating angle, like you would find in the officer lounge and mess areas. Those angles are, like the human form proportions, derived from the ergonomic data and illustrations from The Measure of Man and Woman: Human Factors in Design, by Alvin R. Tilley, Henry Dreyfuss Associates, first published in 1993.
I will also likely do another set of seated figures next which will have the figure sitting in the “work seating” angle position. But hopefully I will have more definitive reference material for bridge and workstation seating as designed for the movie sets, after the conclusion of a Star Trek blueprint auction being held at the moment. That auction has bunch of set blueprints created by Paramount Pictures in 1978-1979 for the filming of the movie.

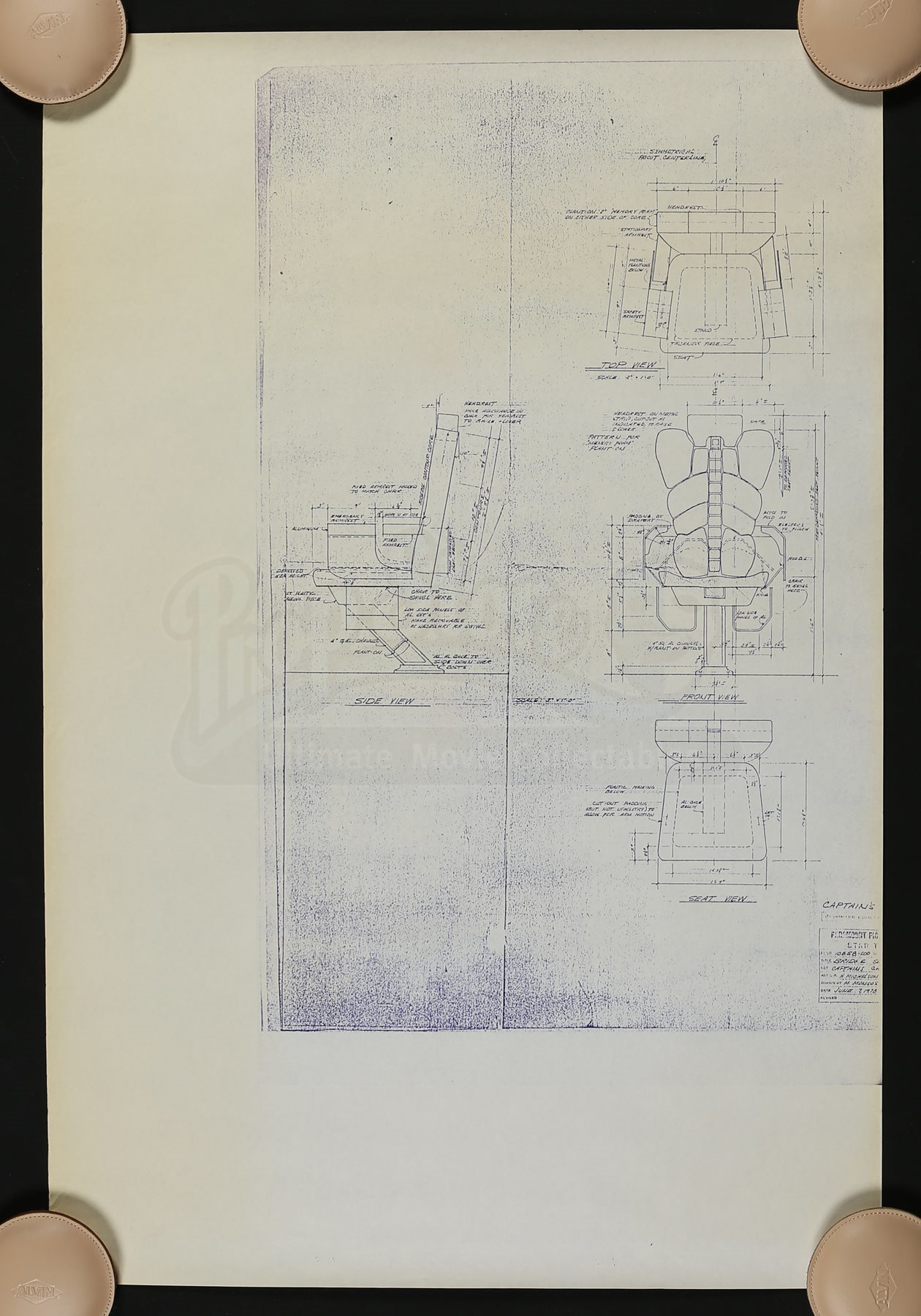

In particular they have a blueprint of Captain Kirk’s command chair for the movie. While a version of the bridge chair illustration appeared in the David Kimble “official blueprints” published in 1980 as a tie-in for the movie, It was somewhat simplified and did not contain any of the actual dimensions.
The ones I am bidding on are the actual construction blueprints used to make the actual seat pieces, and has all the relevant dimensions for the set-crews actually build the chairs for the movie. Another six days before that online auction closes.
Wish me luck.
The design of the chair has taken on a bit of added interest for me due to it the fact that in my conversation with Richard Taylor, he mentions pushing for, and finally convincing Gene Roddenberry, to incorporate safety restraints into the design of the chairs. Hence to the fold-over arm lap-restraints that featured in the wormhole sequence of the film.
8 thoughts on “Uniform Seating”
1) “Maintenance personnel” and “personnel”
2) Good point about Starfleet wanting its own color-coding system. “Vulcan sand” being among the color names…
LikeLiked by 1 person
Yikes. See what cough suppressant and typing at 1 in the morning gets me?
Will fix this afternoon.
Typos corrected. Thank you for pinging me about them.
The official colour of Kirk’s admiral’s uniform is “loden green” (“The Making of ST:TMP”).
LikeLiked by 1 person
Thanks. I was aware of that which was also mentioned over on Spike’s Star Trek uniform webpage in the footnotes on the website.
That said, like most named colors, Loden green is not a specific value but a range of values depending on what color system, clothing and fabric manufacturer you look at. Most values in the Pantone vs. other color systems have differing versions of Loden green. Which range from a light olive green hue to a dark Lincoln green hue.
My photo study included digital color sampling over 50 images of the costume and from blue-ray screen grabs and averaging then the using Babel Color to find the cross-color model closest rgb values. Then using that to find the nearest Pantone color via Pantone’s library matching.
I did the same for the other uniform colors as well.
Hi there. Love your work and all the details you do. I have one question though. What is the name of the CAD/Graphics software you use
to create your graphics. I’m looking to have to update my dinosaur software soon and looking to see what is being used.
Hello Michael, sorry for the long delay in seeing your comment in the queue. I have been using Adobe Illustrator for the 2D work (digital old-school actually and not a CAD program er se). And exporting/importing to and from Moment of Inspiration (MoI), which is a 3D modeling program that works as a CAD as well. I chose it for several reasons. One it is a is NURBs-based program. . This is allows perfect mathematical compound curves and surfaces.
And it works smoothly with, and can directly open and export native with Adobe Illustrator .ai files. This generates true vector defined shapes and bezier curves, etc.
I talk a little bit about it here:
